ACMU Automated Conversion from Mainframe to UNIX

Visualise the execution flow generated from an MVS JCL.

JCL Graph

This JCL diagram is generated automatically while ACMU converts the JCL into a shell script.

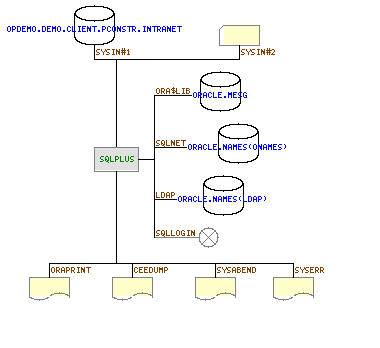

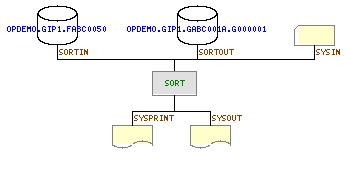

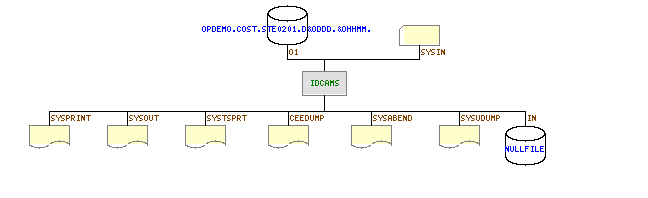

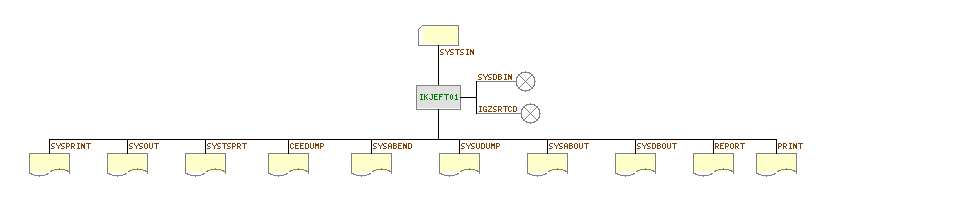

For each step, it shows:

  • execution conditions
  • input files
  • SYSIN statements
  • the programs or procedures executed
  • output files
This helps Open Systems teams that are unfamiliar with MVS JCL understand the batch workflow.


JCL: DEMOFR21     JOBNAME: DEMOFR21


Step #00001 : INIT0000

Click on items to show details

Step #00002 : STEP0005

Click on items to show details

Step #00003 : STEP0010

Click on items to show details

IF Statement 00004 : COND0015


-

Step #00005 : STEP0015

Click on items to show details

ENDIF Statement 00006 : COND0015

END OF JOB DEMOFR21

ACMU JCL Converter - © HH&S 2022

Statistics:

Input JCL file : DEMOFR21                  119 lines

Jobname        : DEMOFR21

Output script  : DEMOFR21.sh               970 lines, including comments

Generated      : 22 May 2022 18:41:24 using ACMU v532



Top
